Product Catalog

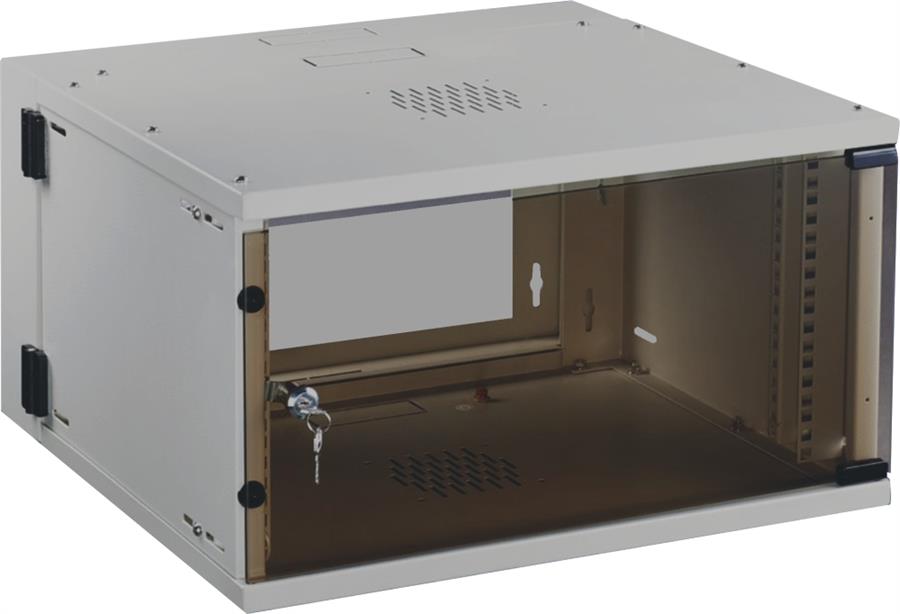

AU type wall mount cabinet

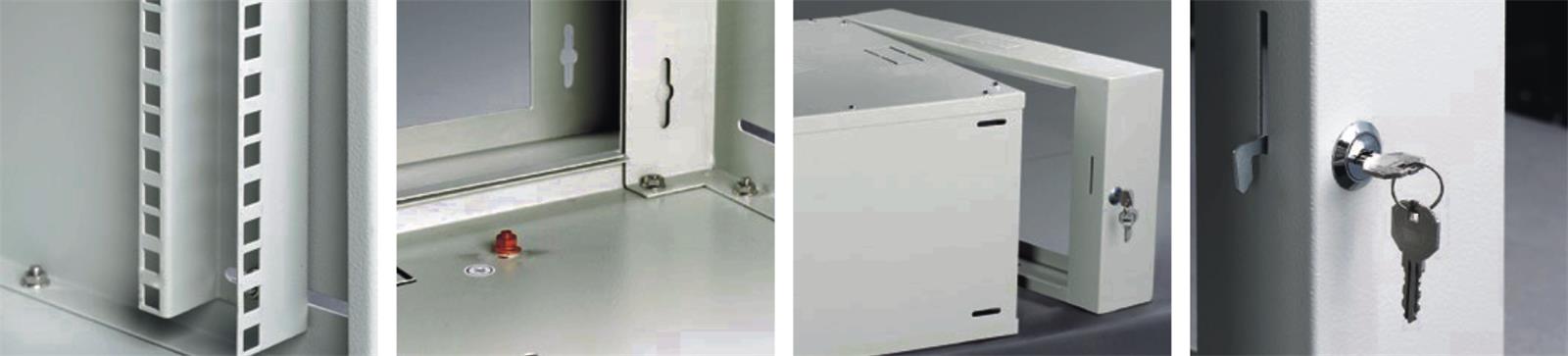

Product features:
- Elegant design, exquisite techniques, precise size, in the fashion
- Adds value to your project
- Static loading: 50kg
- Convenient wall installation design
- Fall type hole in the top and bottom
- Door can be open from either side (no tools are required)
- Easy for spare parts packing
- Back frame optional
Surface treatment:
- Degreasing, pickling, phosphorescence, ablution and powder coating
Product description:
- AU model is a modular wall mounted cabinet
- With the elegant design, it is widely used in computer network system, university education equipment, broadcasting system and communication system
- Suits to put sophisticated computer and electronic equipment
Products configuration:
- Material: cold rolled quality steel
- Side board: 1.5mm, 2 pieces
- Front door: 1.2mm, 1 piece
- Back frame: 1.5mm, 1 piece
- Column: 1.5mm, 2 pieces
- Top: 1.5mm, 1 piece
- Bottom: 1.5mm, 1 piece
- Screw nut bulked: 20 sets
AU5406: 6U, 540x500x312mm, flat packing: 0.053cbm
AU5409: 9U, 540x500x445mm, flat packing: 0.060cbm
AU5412: 12U, 540x500x580mm, flat packing: 0.076cbm
AU5415: 15U, 540x500x712mm, flat packing: 0.091cbm
AU6406: 6U, 600x500x315mm, flat packing: 0.058cbm
AU6409: 9U, 600x500x445mm, flat packing: 0.053cbm
AU6412: 12U, 600x500x580mm, flat packing: 0.081cbm
AU6415: 15U, 600x500x712mm, flat packing: 0.101cbm
Mark: AU type cabinet can be shipped by assembled or disassembled
Color:
- Black (RAL9005)=B
- Gray (RAL7035)=G
