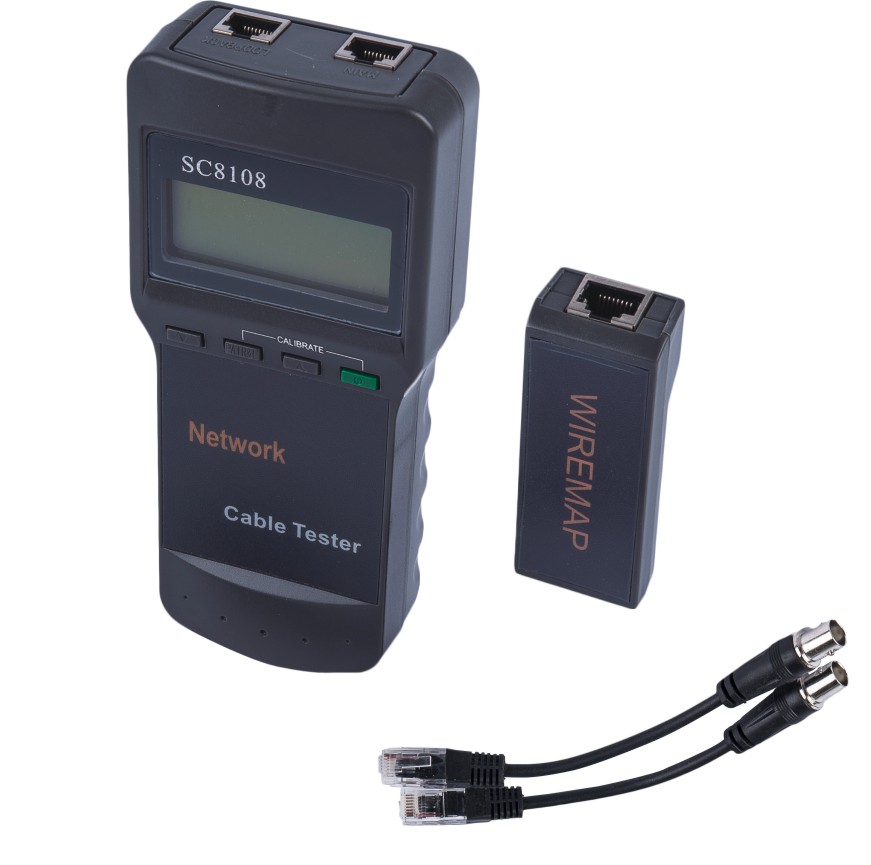

Cable tester 653018

Cable tester

1. Function and features:
   1. One person enough to complete cable continuity check
   2. Check wiring error in 5E, 6E, coaxial cable and telephone line such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference
   3. Locate the wiring or connection error
   4. Measure cable length and determine the distance of open circuit and short circuit
   5. Dynamically calibrate cable length and make length measurement as accurate as 97%
   6. Simple and easy use
   7. Big screen to display test result clear
   8. Portable unit with long battery life (wait-case 50 hours)
   9. Automatically time-delay shut off
   10. Measure length and pair with or without far-end recognizer
   11. Locate cable and there are 8 far-end passive test jacks (ID No. ID 1 - ID 8)
   12. Far-end recognizer with prompting voice
   13. Self-checking function and automatically compensate any change in battery capacity or ambient temperature
   14. Single board computer software watchdog design and reliable operation
   15. LCD back light instructions
2. Technical specifications:
   1. Overall dimensions: 180 x 80 x 40mm
   2. Power supply: 4 x 1.5V AA batteries with power consumption 16mA
   3. Display: special 4x16 character big screen LCD lattice (valid visual field 61.6x25.2 mm)
   4. Type of test cable:
      1. STP/ UTP twin twisted cable, coaxial cable, telephone line
      2. Working ambient temperature: -10 to +60°C
   5. Test port:
      1. Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 (R)
      2. Extra BNC and RJ11 converters are used to measure and check the continuity of coaxial cable and telephone line
   6. Length measurement of twin twisted cable:
      1. Scope: 1350 m (31,200ft)
      2. Calibration accuracy: 3% (±0.5M or ±1.5ft), (calibrating cable >5m)
   7. Shipment accuracy: 5% (±0.5M or ±1.5ft), (AMP and T class 5 cable)
   8. Display: M or ft
   9. Length calibration:
      1. User can set calibration factor by himself with a given length cable
      2. Length of calibrating cable is more than 5M
      3. Wire sequence and locating cable error: check errors such as open circuit, short circuit, reverse connection, cross-over or cross-talk interference
   10. Locating cable:
       1. 8 far-end passive test jack (ID 1 >/= ID 8)
       2. Automatic time-delay shut off time: tester does not operate for 30 minutes
