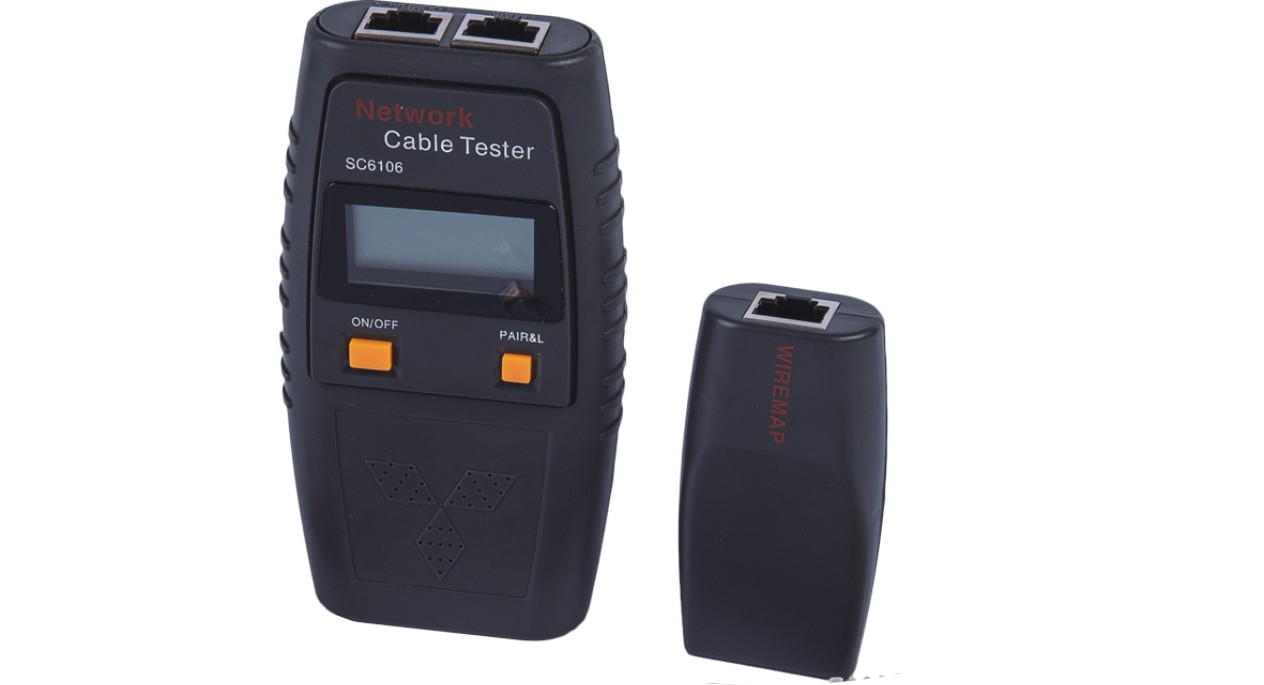

Cable tester 653022

Cable tester

1. Features:
   1. Capable to test unshielded pair (UTP, FTP) of RJ45 port and with special adapters, it is capable to test RJ11 port, telephone line (TEL) and coaxial cable (BNC)
   2. One person is enough to complete link continuity test
   3. Capable to detect wiring troubles such as open circuit, short-circuit and dislocation
   4. Simple and easy use and the test result is clear at a glance with the aid of LCD display of wiring diagram
   5. Voice report of test result makers test work convenient and interesting (only model A unit)
   6. Portable with long service battery (reserve for 50 hours)
   7. Capable to locate cable with 8 far-end passive test ports (identification number ID 1- ID 8 is used for quick check of cable far-ends respectively)
   8. Single chip microprocessor software watchdog design is reliable in operation
   9. Low battery voltage alarm display
2. Technical index:
   1. Overall dimension: 123.7 x 66.5 x 24.5mm
   2. Battery: 4 x AAA 1.5V dry battery with power consumption 8mA  (exclude)
   3. Display: special cable tester LCD display (effective visual range 35 x 17mm)
   4. Cable types to be tested: UTP/FTP twisted line, coaxial cable (BNC) and telephone line (TEL)
   5. Working ambient temperature: -10 to + 40℃
3. Tester ports:
   1. Main RJ45 master port (M), loop-back RJ45 port (L) and far-end recognizer RJ45 port (R)
4. Maximum length of cable:
   1. Twisted UTP/FTP cable <300m
   2. BNC coaxial cable <500m
   3. TEL telephone line <300m
5. Location of wiring sequence and cable trouble: detection of trouble such as open circuit, short-circuit and dislocation
6. Location of cable link route: maximum 8 far-end identification recognizer is used in test and location of cable links (ID1 - ID8)
