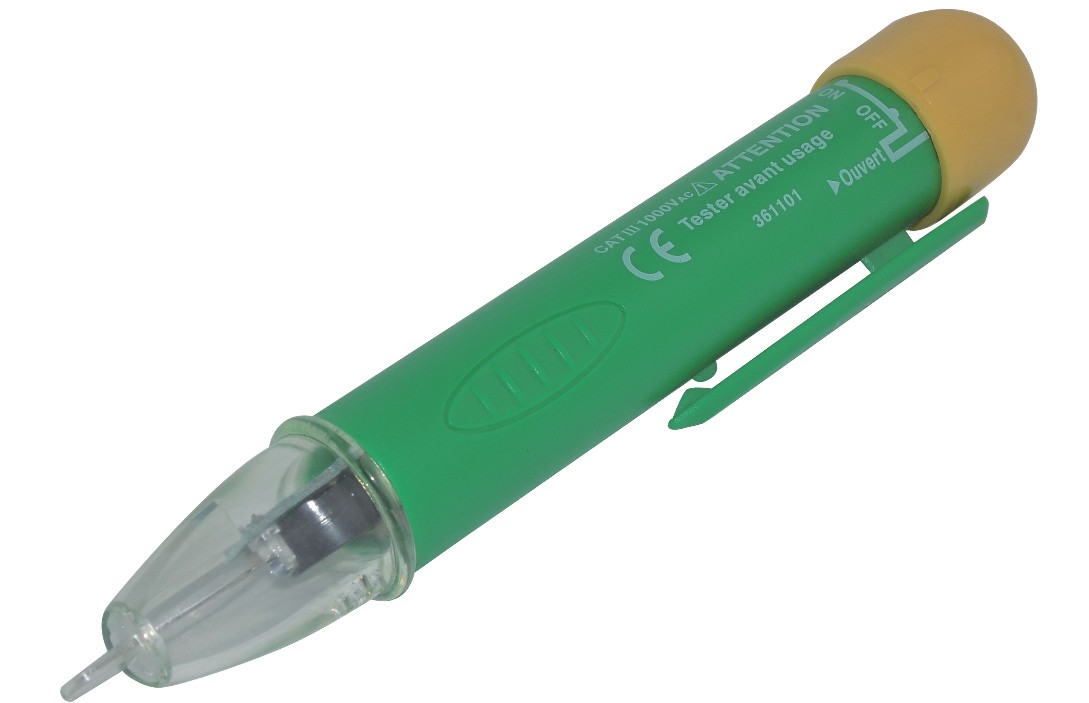

Cable tester 653029

Cable tester

1. Useful for identifying hot and neutral conductors, finding a break in a wire and detecting the presence of AC voltage at outlets, switcher, circuit breaker, fuses and wires and cable, including rooms
2. Note: round cords may have twisted conductors, check foot hot conductors by sliding the unit along the cord
3. Note: CPA650029 can be used to find a break in a wire:
   1. To find a break in hot conductor, trace the wire until the signal stops
   2. To find a break in a neutral conductor, connect a load between the hot and neutral
   3. Trace the wire until the signal stops
   4. Turn the unit on by rotating the battery cap so that the pointer is in the ON position
   5. Test the unit on a known live circuit before each use
   6. If the unit does not function as expected on a known live circuit, replace the batteries
   7. Place the probe tip on or near the circuit or unit to be tested
   8. Tone and flashing led indicate the presence of voltage (50 to 1000V AC)
4. Note: voltage detector cannot detect voltage on armored cable, on sheathed nonmetallic cable that is saturated with water or on cable in conduit, behind panels or in metallic enclosures
5. Packing: gift box
6. Indicators: LED and tone
7. Voltage range: 50 to 1000V AC
8. Frequency range: 50 to 500Hz
9. Measurement categories:
   1. Category Ⅲ, 1000V per UL 61010B-1
   2. Category Ⅳ, 600V per IEC 61010-1, 2nd edition
   3. Category Ⅲ, 1000V per UL 61010B-1
   4. Category Ⅳ, 600V per IEC 61010-1, 2nd edition
10. Operating conditions:
    1. Temperature: 0 to 40°C (32 to 104°F)
    2. Less than 80% relative humidity (no condensing)
    3. Altitude: 2000m (6500') maximum
    4. Indoor use only
    5. Pollution degree: 2
    6. Bartery: two 1.5V batteries (AAA, NEDA 24A or IEC LR03)
