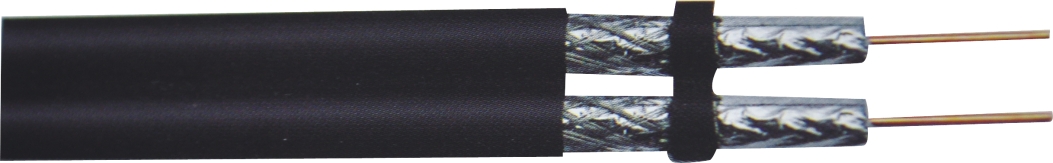

RG6 dual coaxial cable

  • Model NO.: RG6

RG6 dual coaxial cable

  • Professional manufacturer
  • Popular in Europe
  • Cable specifications:
    • Inner conductor: CCA/CCS/CU
    • Dielectric: SPE/foam PE
    • AL foil: bonded, non-bonded, single, double
    • Braiding wire material: Al-Mg, CCA, TC
    • Braiding wire diameter: 0.12, 0.15 and 0.16mm
    • Braiding net: 48, 64, 72, 80, 96, 128 and more
    • Coverage: 40%, 50%, 60%, 80% and more
    • PVC degree: 65, 68, 70 and 75
    • Colors: black, white or grey
    • OEM and customer's designation are welcome

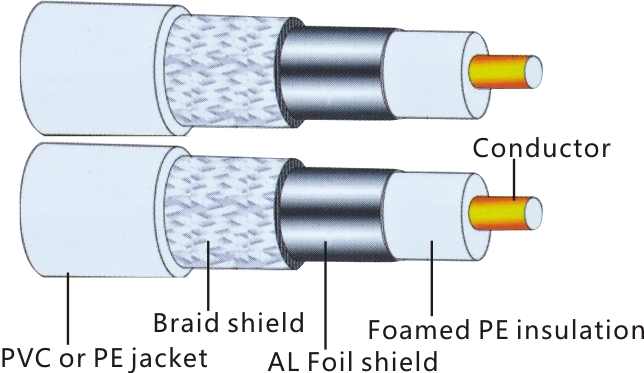

  • RG6 cable construction:
    • Conductor:1*1.024mm TC/CCS/BC or other's need
    • Insulation: 4.57mm LDPE
    • Shield: 16*8*0.16 BC or TC braids
    • Jacket: PVC/halogen-free/alphar megolon PVC
  • Characteristics:
    • Nominal impedance: 75 ohms
    • Nominal capacitance: 56.8pF/m
    • Attenuation: 69dB/km (100MHz)
    • Low losses and low propagation delays
