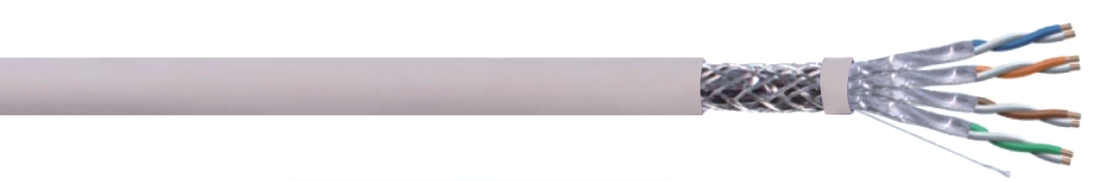

S/FTP Cat6A shielded twissted pair lan cable 100006

S/FTP Cat6A 4PRS 24AWG strand

Specifications
- UTP/FTP/SFTP/FFTP CAT 6A
- Solid BC conductor
- HDPE insulated
- AL foil shielded and LSZH jacket
- CE and UL certified

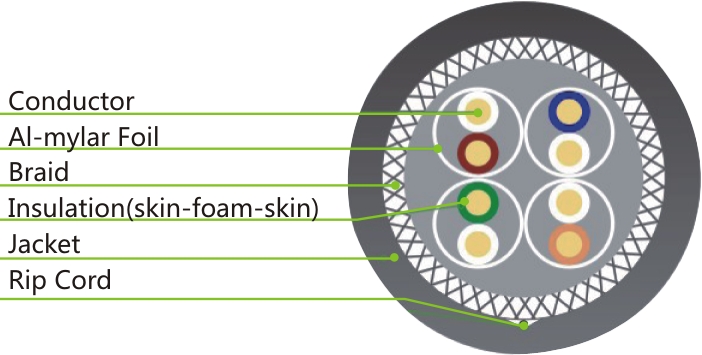

Includes:
- BC conductor
- F-PE insulation
- Twisted pair screen
- Drain wire
- Overall screen
- Rip cord
- PVC sheath
Conductor:
- Material: solid bare copper
- Number of pairs: 4 pairs
- AWG: 24
- Conductor diameter: 0.575 ±0.003mm
Insulation:
- Material: F-PE
- Diameter: 1.35 ±0.005mm
- Average thickness: 0.3875mm
- Minimum point thickness: 0.3870mm
- Twisted pair screen: AL foil (25%)
- Drain wire: Ø0.4mm TC
- Overall screen: AL foil (25%)
- Jacket rid cord: optional
Sheath:
- Material: PVC or LSOH
- Nominal diameter: 8.5 ±0.2mm
- Average thickness: 0.65mm
- Minimum point thickness: 0.645mm
- Operating temperature: -20 to 75°C
- Minimum bend radius (install): (OD) 8mm
- Flame test: CMX, CM, CMR and IEC60332-1
1x 4 pairs solid copper (100% copper) AWG23 100 OHMS LSZH
Green LSZH jacket (RAL 6018)
Each pair must be aluminum foiled separately
Overall shielding with aluminum foil, tinned copper drain wire
