S/FTP Cat7 twissted pair lan cable 100033

  • Model NO.: APC100033

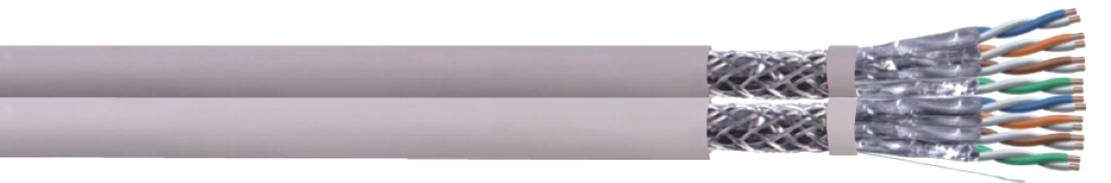

S/FTP Cat7 4PRS + 4PRS 23AWG solid

Specifications

UTP CAT7 CABLE
1)Solid BC conductor;
2)HDPE insulated;
3)AL foil shielded & LSZH jacket;
4)CE, UL certified

UTP/FTP/SFTP CAT7 CABLE

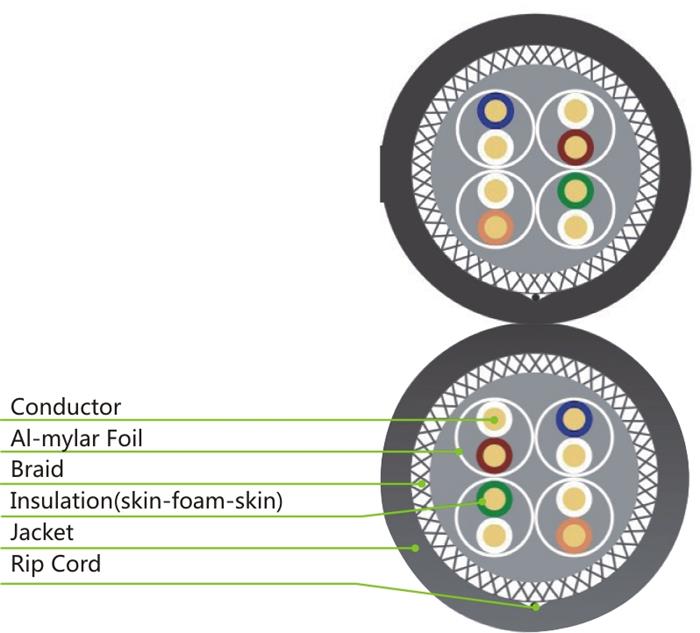

1. SPECIFICATION

 1)  CONDUCTOR

* Raw material of the conductor: solidbare copper

* Conductor Dia.: 0.585±0.003mm (23AWG)

2)  INSULATION

 * Raw material of the conductor:F-PE

 * Quantity:4 twisted pairs

Blue/white-blue;         Green/white-green;

Orange/white-green;    Brown/white-brown;

 * Insulation Dia. : 1.45±0.005mm

 * Average thickness: 0.4325 mm

 Minimum point thickness: 0.43mm

 3) TWISTED PAIRS SCREEN:Aluminum foil

 4) OVERALL SCREEN

 * Raw material of the screen:96/0.10mm TC wire braiding

  * Coverage rate:≥40%

 5) JACKET RIP CORD: Nylonthread

 6) SHEATH

* Sheath material: LSZH or  PVC

 * Nominal Dia.: 7.5 ± 0.2mm

  * Average thickness: 0.65mm

 * Minimum point thickness: 0.55mm

2,    MechanicalProperties

Conductor insulation material: halogenfree Foam/Skin material

 Cable jacket material:halogen-free, flame-retardant material

 Application area: dray as well ashumid rooms

 Temperature (moved): 0°C to 50°C

Operating temperature: -20°C to +60°C

 Min. bending radius for one-timebending: 4×O.D.

 Min. bending radius during installation:8×O.D.

3,   Electrical properties

 Loop impendence: 130 W/km

Highest impendence difference: 2%

Insulation resistance >5000 MW x km

 Impendence Z0 at 1500MHz: 100 W ± 15%

 Impendence Z0 at 1350MHz: 100 W ± 18%

 Impendence Z0 at 1600MHz: 100 W ± 25%

Surface transfer impendence: < 100 MWper Meter at 10MHz

Earthing symmetry db/BZL = 1000m >46dB at 64kHz

 Earthing symmetry db/BZL = 100m> 40dB at 1MHz

Earthing symmetry db/BZL = 100m >20dB at 100MHz

Mutual capacitance: 43pF/m

 Highest earthing-coupling:0,001MHz: 1000 pF/km

Propagation speed at > 10MHz (NVP*c):0,79c

 Signal propagation delay>10MHz: 4,2ns/m

 Skew: <25ns/100m



PACKAGING

305m/1000ft Easy pulling box;

500m/wooden reel;

1000m/wooden reel
