U/UTP Cat3 twisted 25/50/100 pairs lan cable 100055

  • Model NO.: APC100055

U/UTP CAT3 twisted 25pairs 24AWG

Standard:

ISO/IEC 11801

ANSI TIA/EIA 5688.2

Application:

10/100 base(IEEE802.3)

token ring(IEEE802.5)

1000 base-T(gigabit ethernet)

155/622 Mbps ATMpoe

Electrical characteristics:

impedance:4-100MHZ 100+/-15(ohms)

Max:conductor DC resistance 20C:8.4(ohms/100m)

resitance unblance(%):max2.5

pair-to ground capacitance unbalance:330(pf/100m)

transfer impedndance:max10 mohms/m@100Mhz

coupling attenuation:min 80 db

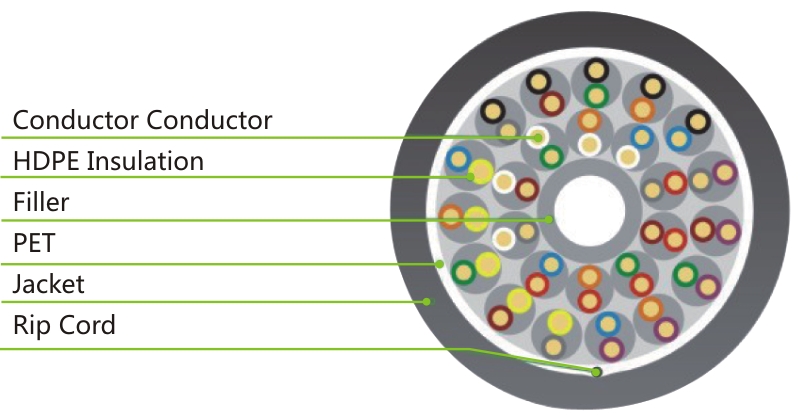

Product disciption:

bare copper conductor

HDPE insulation

rip cord:optional

rated temperature:60C,75C

Flammability grade:CMX,CM,CMG,CMR,LSZH

copper or CCA conductor availabe

jacket color:different color available

pack:305m,500m available
