U/UTP Cat6 twissted pair lan cable 100035

  • Model NO.: APC100035

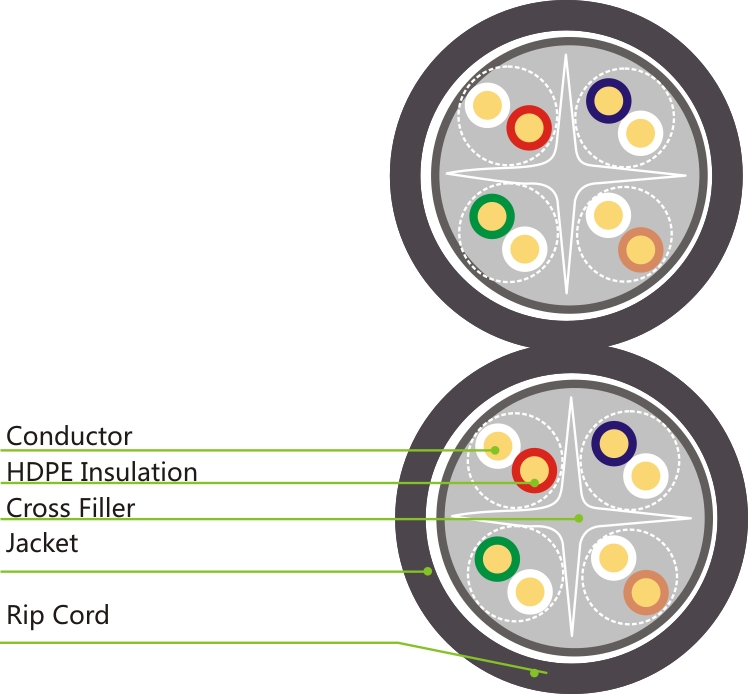

U/UTP Cat6 4PRS +4PRS 23AWG solid

  • Specifications:
  • Cat.6 LAN cable for internet connection
  • UL CE RoHS ISO 9001 SGS certifications
  • FLUKE DSP-4300 PASS
  • UTP/FTP/SFTP
  • Features:
    • TIA/EIA-568B.2-1
    • ISO/IEO 11801
    • Fire protection: IEC60332-1 (CM, CMR and CMP)
    • Cable is used for indoor and outdoor installation
    • Technical characteristics:
    • Conductor: copper and CCA available
    • Conductor diameter:  23AWG (4x2x1/0.57)
    • Pair insulation: polyethylene
  • Pair identification:
    • Pair1= blue/white
    • Pair2= orange/white
    • Pair 3= green/white
    • Pair4= brown/white
  • Outer jacket: PVC compound jacket
  • Jacket color: different color available
  • Conductor resistance at 20°C 9.38 Om/100m
  • DC resistance unbalance 5%
  • Capacitive unbalance pair to ground 330 pF/100m
  • Impedance 0.772-100MHz 85-115 Ohm
  • Maximum working capacity of 5.6nF/m
  • External cable diameter of 5.1 ± 0.2mm
  • Bending radius: 8xO during installation, 6xO with vertical
  • Cabling and 4xO the horizontal cabling
  • Standard packing: 18.5 x 37.5 x 36.5cm (W x H x D) - 305m
  • Weight without cable, weight: 9.7kg
  • Cable weight with packing: 10.5kg
  • Weight 1km of cable: 31.8kg
  • Operating temperature: -20 to +75°C
  • Standards: UL444/UL1581 and TIA/EIA 568B.2
  • Installation temperature: 0 to +60°C
  • Operating temperature: -20 to +75°C
  • Pulling strength: 130N
  • Minimum bend radius: 4 outer cable diameters
  • Dielectric breakdown: 1000V DC conductor to conductor
  • Velocity of propagation: PE=65%
  • Maximum skew: 45ns at 100 meter
