AM type wall mount cabinet

AM type wall mount cabinet
  • Model NO.: AM type
  • Product description:
    • Materials:Spcc cold rolled steel
    • Surface treatment:Deareasing,rustproof,phosphoric spraying

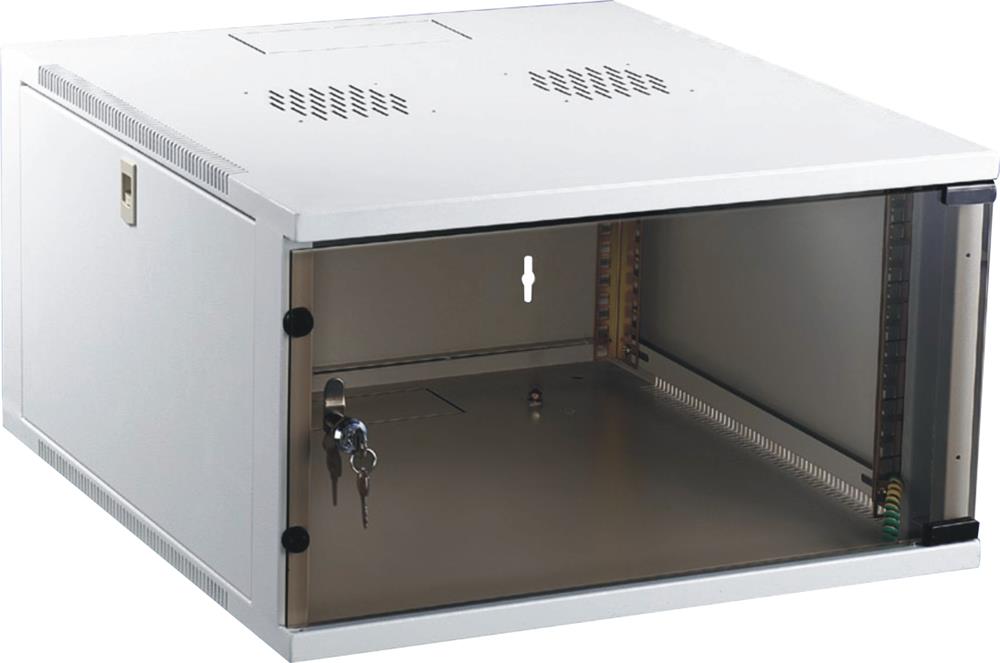

    • Exquiste design with precise dimension and craftsmanship.Tempered glass front door.
    • Installation can be optional for standing or wall mounting.
    • Easy installing and maintaining.
    • Frame structure with the load of 50kg.
    • Various optional accessories are available
  • Product features :
    • Variety of heights with tempered glass locking doors
    • Quickly removable side door
    • Installation can be optional for standing or wall mountiong

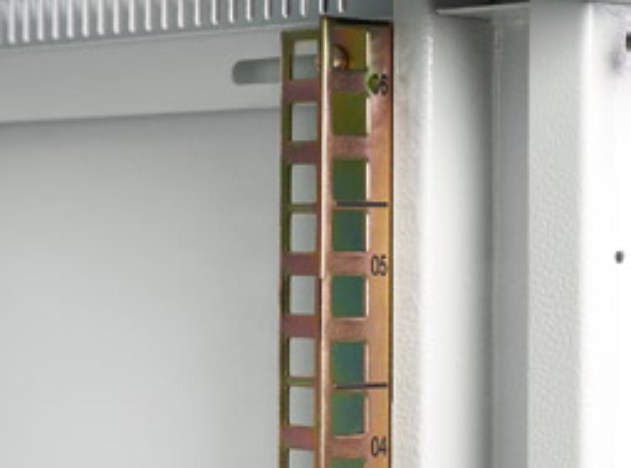

    • Adjustable mounting rails front and back
    • Feet and castors can be provided for standing installation

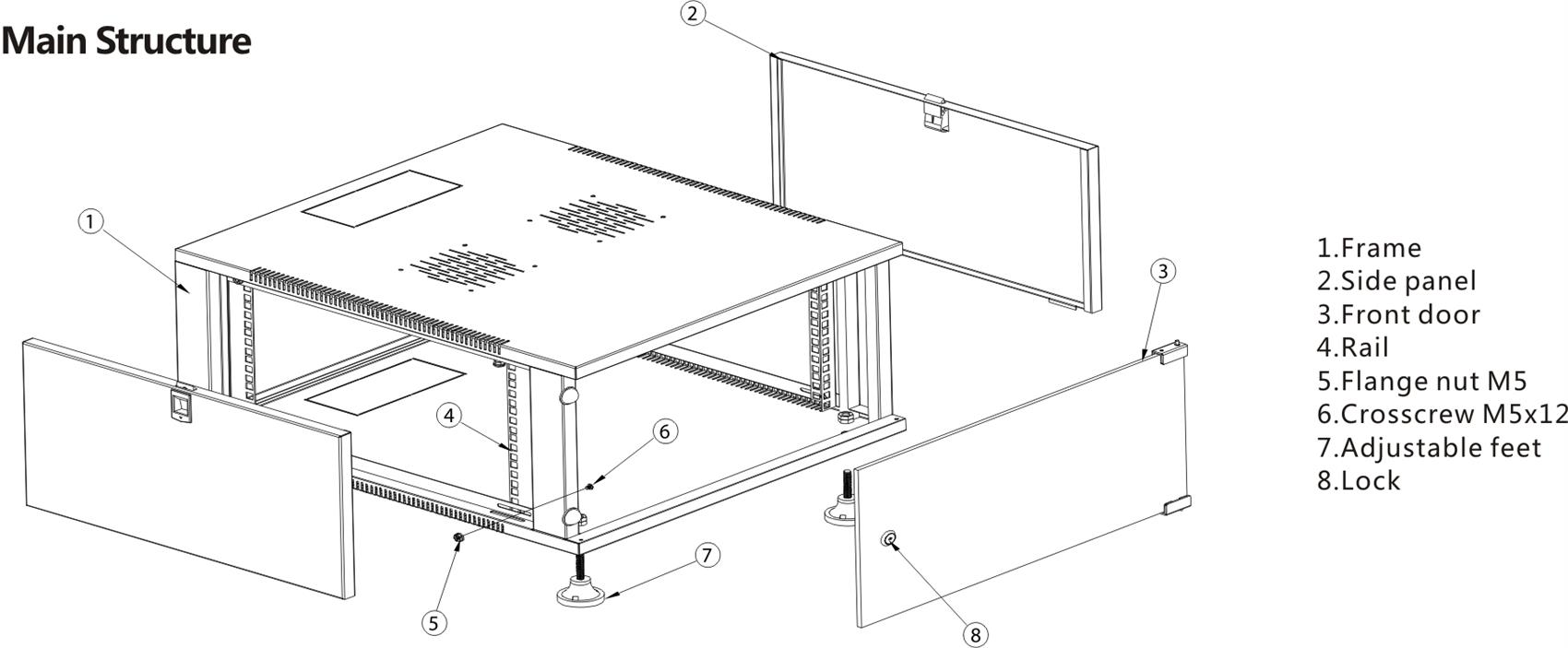

  • Products configuration:
    • Material: cold rolled quality steel
    • Frame: 1.0MM, 1PC
    • Side panel: 1.0MM, 1PC
    •  Front door: 1PC
    • Rail: 1.5MM, 4PCS
    • Flange mutM5: 8PCS
    • Cross screwM5x12: 8PCS
    • Adjustable feet: 4PCS

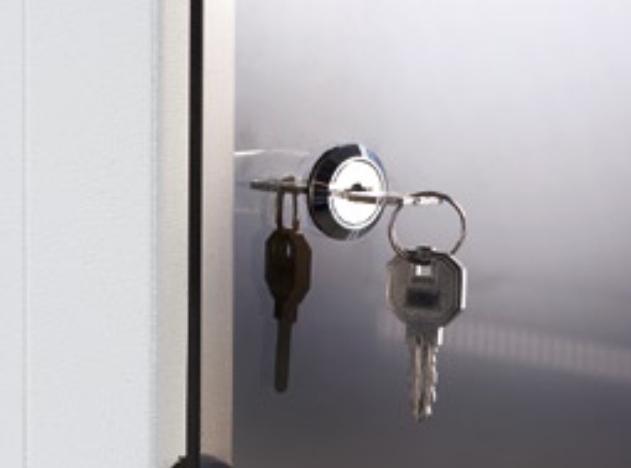

    • Lock: 1PC

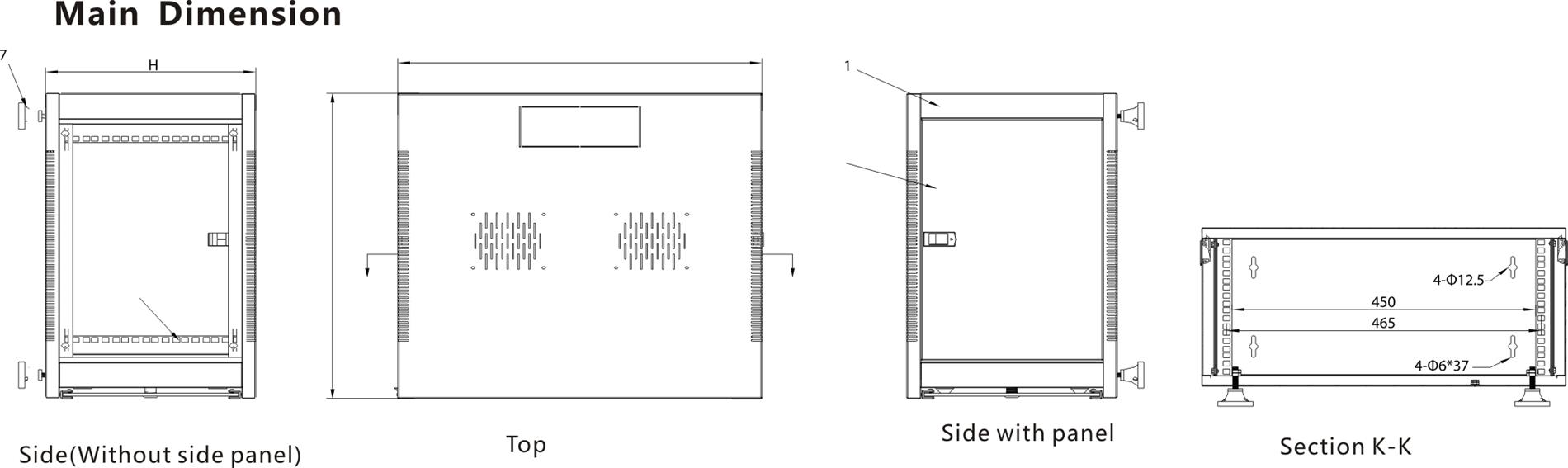

  • AM5606: 6U,  540X600X310MM,   Flat packing: 0.1146CBM
  • AM5609:9U,  540X600X445MM,   Flat packing: 0.1614CBM
  • AM5612: 12U,  540X600X580MM,   Flat packing: 0.2083CBM
  • AM5615: 15U,  540X600X710MM,   Flat packing: 0.2534CBM
  • AM5606: 20U, 540X600X932.5MM,   Flat packing: 0.3298CBM
  • AM5625: 25U,  540X600X1155MM,   Flat packing: 0.4080CBM

    Mark: AM type cabinet can be shipped by assembled or disassembled

    Color:

    Black (RAL9005)=B

    Gray (RAL7035)=G
