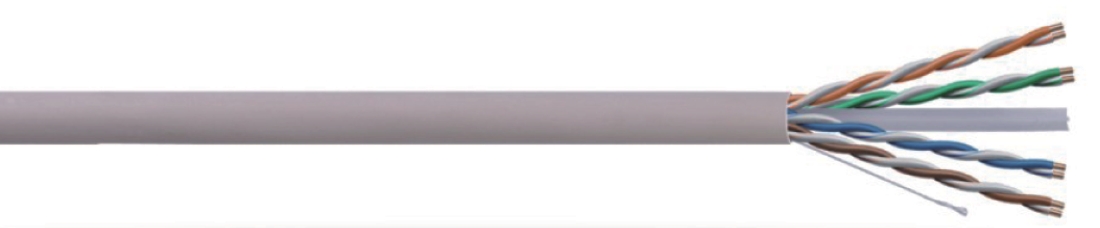

U/UTP Cat6A twissted pair lan cable 100013

  • Model NO.: APC100013

U/UTP Cat6A 4PRS 23AWG solid

  • Specifications
    • UTP/FTP/SFTP/FFTP CAT 6A
    • Solid BC conductor
    • HDPE insulated
    • AL foil shielded and LSZH jacket
    • CE and UL certified
  • Includes:
    • BC conductor
    • F-PE insulation
    • Twisted pair screen
    • Drain wire
    • Overall screen
    • Rip cord
    • PVC sheath
  • Conductor:
    • Material: solid bare copper
    • Number of pairs: 4 pairs
    • AWG: 24
    • Conductor diameter: 0.575 ±0.003mm
  • Insulation:
    • Material: F-PE
    • Diameter: 1.35 ±0.005mm
    • Average thickness: 0.3875mm
    • Minimum point thickness: 0.3870mm
    • Twisted pair screen: AL foil (25%)
    • Drain wire: Ø0.4mm TC
    • Overall screen: AL foil (25%)
    • Jacket rid cord: optional
  • Sheath:
    • Material: PVC or LSOH
    • Nominal diameter: 8.5 ±0.2mm
    • Average thickness: 0.65mm
    • Minimum point thickness: 0.645mm
    • Operating temperature: -20 to 75°C
    • Minimum bend radius (install): (OD) 8mm
    • Flame test: CMX, CM, CMR and IEC60332-1
  • 1x 4 pairs solid copper (100% copper) AWG23 100ohms LSZH
  • Green LSZH jacket (RAL 6018)
  • Each pair must be aluminum foiled separately
  • Overall shielding with aluminum foil, tinned copper drain wire
